Rubber Angle Extrusions Manufacturer – Custom Sizes and Materials
Seashore providing custom rubber angle extrusions in a wide range of sizes, materials, and colors options. Our rubber angle extrusion profiles are available in EPDM, NBR, silicone, neoprene, and other rubber compounds for sealing, edge protection, cushioning, and industrial applications.
Key Features Include:
Rubber Angle Extrusions Overview

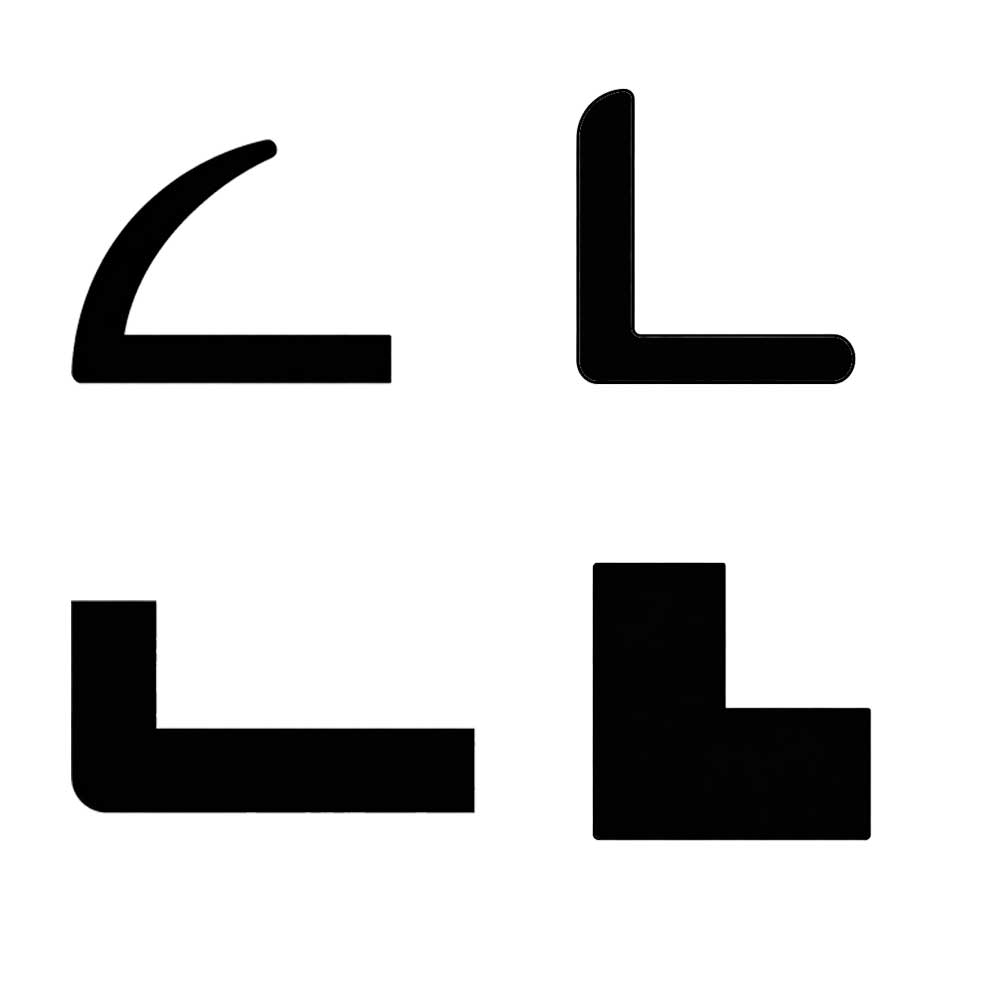

Rubber angle extrusions are continuous rubber profiles manufactured with an angled cross-section, most commonly in an L-shaped configuration. They are designed to fit along corners, junctions, frames, panels, and structural edges where two surfaces meet.
The extrusion process allows the profile to maintain a consistent cross-section over long lengths, making it suitable for both standard installations and custom fabrication. Depending on the design, the two legs of the angle can be equal or unequal in width, while wall thickness and corner radius can also be adjusted to match the mating structure.
Rubber angle extrusions are widely incorporated into industrial equipment, vehicle components, construction systems, enclosures, doors, glazing assemblies, and fabricated metal products. They can be supplied in continuous coils or cut lengths for further assembly and installation.
Specifications of Rubber Angle Extrusion Profiles
| Parameter | Specification |
| Product | Rubber Angle Profiles |
| Material | EPDM, Neoprene, NBR, Silicone, SBR, Natural Rubber,TPE |
| Profile Type | L Profile / Angle Profile / Custom Profile |
| Angle | 30°, 45°, 60°, 90°, Custom |
| Hardness | 30–90 Shore A |
| Color | Black, White, Gray, Red, Custom Colors |
| Density | 1.1–1.5 g/cm³, Depending on Material |
| Surface Finish | Smooth, Textured, Fabric Finish, Custom |
| Tolerance | According to Drawing / Customer Requirements |
| Adhesive | Self-Adhesive / Non-Adhesive |
| Reinforcement | Without Reinforcement / Fabric / Metal Insert |
| Application | Sealing, Edge Protection, Corner Protection, Industrial Equipment |
| Customization | Custom Profile, Size, Hardness, Color and Compound |
Applications of L-Shaped Rubber Seals
- Machinery & Equipment – Protects 90° corners and frame edges.
- Metal Enclosures – Covers right-angle panel joints and corners.
- Doors & Hatches – Seals L-shaped frame edges and contact points.
- Glass & Panels – Cushions and protects exposed corner edges.
- Vehicles & Trailers – Used on body corners, compartments, and frames.
- HVAC Systems – Fits rectangular duct and casing corners.
- Construction Systems – Suitable for wall, frame, and panel corner joints.
